Wednesday, May 30, 2018

Underwater Tripod System

INON INC. is pleased to announce official release of new underwater tripod system consists of "UW Tripod Hub" and "UW 3-Way Panhead" on May 31st, 2018.

•UW Tripod Hub
--Release date: May 31st, 2018
--JAN code: 456212143 868 2

•UW 3-Way Panhead
--Release date: May 31st, 2018
--JAN code: 456212143 869 9






UW Tripod Hub





UW 3-Way Panhead





■ Product features ■

•Having "UW Tripod Hub" as a fundamental part, this newly designed underwater tripod system offers wide variety of configurations of "pan-head parts" and "tripod legs".
•In addition to use on land and in freshwater, whole system is usable in saltwater thanks to specially selected material, surface finishing and assembling method. (*1)


Left: UW Tripod Hub + UW 3-Way Panhead + Carbon Telescopic Arm M x 3
Right: UW Tripod Hub + Shoe Base 1/4-20UNC Head + Stick Arm XS-T x 3

(*1)
After using, make sure to rinse the product in fresh water to dissolve salt deposit and apply grease according to respective user manuals.



● UW Tripod Hub features

•Designed to attach "Carbon Telescopic Arm SS/S/M/L" or "Stick Arm XS-T/SS-T/S-T/M-T" as tripod legs.

Example set-ups with "Carbon Telescopic Arm SS", "Carbon Telescopic Arm S",
"Carbon Telescopic Arm M" and "Carbon Telescopic Arm L" (from the left)



Example set-ups with "Stick Arm XS-T", "Stick Arm SS-T" and "Stick Arm S-T" (from the left)


•Bundled ferrule offers two different styles depending on application.

Left: Rubber ferrule
Right: Spike ferrule



Left: Application using rubber ferrules
Right: Enlarged image of rubber ferrule

•The UW Tripod Hub is equipped with 1/4 tripod screw to add "UW Panhead" or head part of variety of Shoe Base products (*2). Usable as a simple tripod by attaching underwater housing directly.

Example set-ups with "UW 3-Way Panhead", "Shoe Base 1/4-20UNC Head", "Shoe Base M6 Head", "Shoe Base BALL Head" and "underwater housing" (from the left)

(*2)
Compatible Shoe Base products are "Shoe Base 1/4-20UNC", "Shoe Base M6" and "Shoe Base BALL" as their head part can be separated. Those head parts are available in the market as below.
•Shoe Base 1/4-20UNC Head
•Shoe Base M6 Head
•Shoe Base BALL Head


•The UW Tripod Hub offers three opening angles; [high], [middle] and [low].
Friction when opening/closing legs can be adjusted by tightening/loosening fixing bolts on joints.

UW Tripod Hub at [high], [middle] and [low] position (from the left).


•It is possible to add extra Lower Elevator on the packaged Lower Elevator to add 145mm/5.7in. in height.

Left: Packaged "Lower Elevator" being attached.
Right: Raised UW 3-Way Panhead.


Highest configuration with the UW 3-Way Panhead being raised in its highest position by bundled "Lower Elevator" and combined "Carbon Telescopic Arm L" are fully extended.


・It is also possible to hang down a camera system by attaching the elevator upside-down for extremely low angle shooting or shooting a subject just underneath of the tripod.
Underwater housing hung down from the "UW Tripod Hub" by installing the elevator upside-down.


・There are several options to enhance stability of the tripod system including hanging a dive weight from the strap hole or jointing a dive weight by using a ball-joint on a tripod leg besides using a stone bag.

Left: An 1 kg dive weight is hung by a lanyard.
Right: An 1 kg dive weight is attached on the edge of leg part by "Weight Plate Screw", "Direct Base III" and "Clamp III".

Left: 3 x 2 kg dive weights are attached on tripod legs (configuration overview)
Right: 3 x 2 kg dive weights are attached on tripod legs (tripod legs)


● UW 3-Way Panhead Features

•Specifically designed for the UW Tripod Hub equipped with large handles to offer comfortable yet précised adjustment of combined camera position.


•When transporting, two handles can be jointed as per below image.


•Using Bundled "Panhead Adapter Base" supports secure and reliable underwater housing installation. (*3)

・Using Bundled "Panhead Adapter Base" also enables to attach an underwater housing combined with "Grip Base M1" or "System Base II" (*4)(*5)


(*3)
The bundled "Panhead Adapter Base" is usable only when a housing is equipped with two tripod screw holes (1/4 in.) with center-to-center distance of 33 to 80mm/1.3 to 3.1in. on its bottom.
(*4)
To install an underwater housing combined with INON Grip Base M1, the underwater housing has to have two tripod screw holes (1/4 in.) with center-to-center distance of either 33 to 40mm/1.3 to 1.6in. or 44 to 80mm/1.7 to 3.1in. on its bottom.
(*5)
To install an underwater housing combined with INON System Base II (Main Base II), the underwater housing has to have two tripod screw holes (1/4 in.) with center-to-center distance of 47 to 80mm/1.9 to 3.1in. on its bottom.


■ Specifications with Different Arms ■

Detailed specifications (height/height with lowering elevator/lowest height/collapsed size) with different arms installed as tripod legs are available on below link page
[Underwater Tripod System Specifications]
http://www.inon.co.jp/cgis/news/img/UWTripodSystem_ArmSpecChart_En.pdf  [PDF: 595KB]


■ Compatible Products ■

● UW Tripod Hub [Leg mount]
•Carbon Telescopic Arm SS/S/M/L
•Stick Arm XS-T/SS-T/S-T/M-T

● UW Tripod Hub [Elevator]
•UW 3-Way Panhead
•Shoe Base 1/4-20UNC Head
•Shoe Base M6 Head
•Shoe Base BALL Head
•Single Light Holder LE for Tripod
•Single Light Holder LF for Tripod
•Tripod Adapter
•SD Mount Cage for HERO3/3+/4, SD Front Mask STD, SD Front Mask for HERO5/6, SD Mount Base UWH1, SD Mount Base for TG-Tracker
•Underwater housing equipped with 5mm or deeper 1/4in-20UNC tripod screw hole

● UW 3-Way Panhead [Base]
•UW Tripod Hub

● UW 3-Way Panhead [Head]
•Underwater housing equipped with 5mm or deeper 1/4in-20UNC tripod screw hole
•Grip Base M1
•Main Base II


■ Relative information on INON web site ■

•Shoe Base series
http://www.inon.jp/products/armsystem/shoebase.html
•Carbon Telescopic Arm
http://www.inon.jp/products/armsystem/arm.html#carbontelescopicarm
•[News] Stick Arm Modification
https://inonnews.blogspot.com/2018/05/stickarm-mod.html





May 30th, 2018
INON INC.


*Press release information is as of May 30th, 2018 and subject to change without prior notice.

Monday, May 21, 2018

Stick Arm Modification

INON INC. announces modification of Stick Arm products to use them as legs for upcoming underwater tripod system.

Stick Arm XS-T
--Release date: May 24th, 2018
--JAN Code: 456212143 872 9

Stick Arm SS-T
--Release date: May 24th, 2018
--JAN Code: 456212143 873 6

Stick Arm S-T
--Release date: May 24th, 2018
--JAN Code: 456212143 874 3

Stick Arm M-T
--Release date: Early June, 2018
--JAN Code: 456212143 875 0


From top;
Stick Arm XS-T
Stick Arm SS-T
Stick Arm S-T
Stick Arm M-T



■ Modification ■

Ball joints on both ends of modified Stick Arms have tripod screw hole "3/8-16UNC".
Modified ball joint with 3/8-16UNC threaded hole.

By having the threaded hole on ball joints, modified Stick Arm can be usable not only as a strobe arm but also as a "tripod leg" of upcoming underwater tripod system. This modification expands versatility of Stick Arm with same effective length and compatibility of optional accessories.



Installed on upcoming underwater tripod system as legs.
One end is screwed in "UW Tripod Hub" and the other end is combined with a ferrule which comes with the "UW Tripod Hub".


Upon this modification, existing arm sets’ names are changed as below and current Stick Arm (without tripod screw hole) will be discontinued.

*****
Stick Arm XS-T Set YS-MV
--JAN Code: 456212143 876 7

Stick Arm XS-T Set Z-MV
--JAN Code: 456212143 880 4

Stick Arm XS-T Set D
--JAN Code: 456212143 884 2

Z-330 Stick Arm XS-T Z-MV Set

S-2000 Stick Arm XS-T Z-MV Set
*****
Stick Arm SS-T Set YS-MV
--JAN Code: 456212143 877 4

Stick Arm SS-T Set Z-MV
--JAN Code: 456212143 881 1

Stick Arm SS-T Set D
--JAN Code: 456212143 885 9

S-2000 Stick Arm SS-T Z-MV Set
*****
Stick Arm S-T Set YS-MV
--JAN Code: 456212143 878 1

Stick Arm S-T Set Z-MV
--JAN Code: 456212143 882 8

Stick Arm S-T Set D
--JAN Code: 456212143 886 6

S-2000 Stick Arm S-T Z-MV Set
*****
Stick Arm M-T Set YS-MV
--JAN Code: 456212143 879 8

Stick Arm M-T Set Z-MV
--JAN Code: 456212143 883 5

Stick Arm M-T Set D
--JAN Code: 456212143 887 3

S-2000 Stick Arm M-T Z-MV Set
*****




■ Relative information on INON Website ■

•Arm System
http://www.inon.jp/products/armsystem/about.html

•Arm Selection Guide
http://www.inon.jp/pdf-dl/_userdata/arm-selecton-guide-en.pdf

• [News] Z Adapter MV, YS Adapter MV, Direct Base III are released
https://inonnews.blogspot.jp/2011/12/z-adapter-mvys-adapter-mvdirect-base.html

• [News] Double YS Adapter MV, YS Adapter WB MV are released
https://inonnews.blogspot.jp/2011/12/double-ys-adapter-mvys-adapter-wb-mvis.html

• [News] Accessory for “Stick Arm”/”Multi Ball Arm”
https://inonnews.blogspot.jp/2011/12/accessory-for-stick-arm-multi-ball-arm.html



May 21, 2018
INON INC.



*Press release information is as of May 21st, 2018 and subject to change without prior notice.

Wednesday, March 28, 2018

Strobe Dome Filter [4900K]/[4600K]

INON INC. is pleased to announce official release of new "Strobe Dome Filter [4900K]" and “Strobe Dome Filter [4600K]” to use for Z-330 strobe to change its native color temperature on March 29th, 2018.

Strobe Dome Filter [4900K]
--Release date: March 29th, 2018
--JAN code: 456212143 863 7

Strobe Dome Filter [4600K]
--Release date: March 29th, 2018
--JAN code: 456212143 864 4



Strobe Dome Filter [4900K]

Strobe Dome Filter [4900K] installed on the Z-330 strobe.

Strobe Dome Filter [4600K]

Strobe Dome Filter [4600K] installed on the Z-330 strobe.


■ Product features ■

The "Strobe Dome Filter [4900K]" warms up native color temperature of the Z-330 5500K to 4900K while the "Strobe Dome Filter [4600K]" changes native 5500K to 4600K. Warmer color temperature delivered from Z-330 strobe through these filters benefits to enhance healthy skin of divers or highlight warm color subject. Also shooting in RAW with same white balance setting (4900K or 4600K) on a camera provides richer blue on background water column with keeping natural color of a subject lit by strobe light.



■ Relative information on INON web site ■

•Underwater S-TTL auto strobe Z-330
http://www.inon.jp/products/strobe/z330/top.html

•Color Temperature Conversion Filter & Diffuser Shooting Tips
(PDF: 1.3MB)
http://www.inon.jp/pdf-dl/_userdata/ColorTemFilter_technic-en.pdf

(iPad, iBooks: 8.9MB)
http://www.inon.jp/pdf-dl/_userdata/StrobeColorTempFilter-en.ibooks



March 28th, 2018
INON INC.




*Press release information is as of March 29th, 2018 and subject to change without prior notice.

Wednesday, February 14, 2018

Shoe Base, Shoe Base Set, S-2000 Starter Kit to be discontinued

INON INC. announces discontinuation of the “Shoe Base” and “Shoe Base Set” in preparation of successor model to be released this April and both items will be available only from limited stock at our dealers. Upon discontinuation of the “Shoe Base”, “S-2000 Starter Kit SB” and “S-2000 Starter Kit D4” will not be available. (Still same combination as the “S-2000 Starter Kit D4” can be created by having “S-2000 Strobe”, “Grip Base D4” and “Z Joint” separately.)


■ Discontinued Products ■

•Shoe Base
--JAN Code: 456212143 356 4

•Shoe Base Set
--JAN Code: 456212143 355 7

•S-2000 Starter Kit SB
--JAN Code: 456212143 434 9

•S-2000 Starter Kit D4
--JAN Code: 456212143 435 6


Shoe Base [Discontinued]



Shoe Base Set[Discontinued]
*Z Joint (upper part of above image) remains available.



S-2000 Starter Kit SB [Becomes not available]
(The kit consists of S-2000 strobe, Shoe Base and Z Joint)
S-2000 Starter Kit D4 [Becomes not available as a package]
(The kit consists of S-2000 strobe, Grip Base D4 and Z Joint)
*As per mentioned, you can create this package by getting each component products separately.



Thank you for the attention and please stay tuned for more unique and innovative products to come from INON in the future to support various needs for underwater imaging.


February 14, 2018
INON INC.




*Press release information is as of February 14, 2018 and subject to change without prior notice.

Tuesday, January 30, 2018

INON Optics Supports SONY DSC-RX0/MPK-HSR1

INON INC. is pleased to announce official release of two attachment lenses on February 3rd, 2018.

•UWL-100 28M55 Wide Conversion Lens (*2)(*3)(*4)
--Release date: February 3rd, 2018
--JAN code: 456212143 867 5

•UCL-G165 M55 Underwater Wide Close-up Lens (*5)(*6)
--Release date: February 3rd, 2018
--JAN code: 456212143 775 3

UWL-100 28M55

UCL-G165 M55

From left: Without lens, with UWL-100 28M55, with UCL-G165 M55

(*1)
Contact Sony Marketing Inc. for detail of camera/underwater housing. INON Inc. confirms product compatibility based on a camera available in Japan.
(*2)
Vignetting is observed on land but underwater will not have vignetting.
(*3)
The "Dome Lens Unit II for UWL-100" is NOT compatible due to vignetting.
(*4)
This lens is the M55 screw mount version of current "UWL-100 28AD" instead of original bayonet mount. Please contact your local dealer if you wish to replace original bayonet mount of the "UWL-100 28AD" with this M55 screw mount.
(*5)
Designed for underwater use only. Vignetting is observed on land but underwater will not have vignetting.
(*6)
This lens is the M55 screw mount version of current "UCL-G165 SD" instead of original bayonet mount. Please contact your local dealer if you wish to replace original bayonet mount of the “UCL-G165 SD” with this M55 screw mount.


■ UWL-100 28M55 Wide Conversion Lens Product Features ■

●Attached Directly on the Genuine Underwater Housing MPK-HSR1
•The lens mount is same M55 screw mount as filter screw of the MPK-HSR1 enabling you to attach the lens directly on the housing without any adapter.

●Compact yet Wide 100 degree Coverage
•The compact lens body matches with compact MPK-HSR1 without to provide handy wide imaging. The lens increases coverage dramatically to maximum 100 degree coverage underwater.



Left: Without attachment lens
Right: With the UWL-100 28M55 Wide Conversion Lens

●Dramatically Shorten Minimum Focusing Distance
Minimum focusing distance of the DSC-RX0 on land is "50cm/1.6ft" which will be extended at x1.3 underwater due to reflection ratio underwater. By attaching this lens, minimum focusing distance underwater will be shorten to "118mm/4.6in" (*7) to enable you to take a Close Focus Wide Angle (CFWA) image.

●Lens Hood II for UWL-100 28AD is compatible
Optional "Lens Hood II for UWL-100 28AD" is usable to block unnecessary light coming from outside of lens coverage to suppress flare/ghost.



■ UCL-G165 M55 Underwater Wide Close-up Lens Product Features ■

●Attached Directly on the Genuine Underwater Housing MPK-HSR1
As same as the wide lens, the lens mount is same M55 screw mount as filter screw of the MPK-HSR1 enabling you to attach the lens directly on the housing without any adapter.

●Wide Close-up Lens with Deep Depth of Field
The optics design widens the coverage slightly to have benefit of deep depth of field making minimum focusing distance underwater "96mm/3.8inch" (*7) enabling to shoot a subject at closer distance.

●Why UCL-G165 M55?
The DSC-RX0 carries wide 24mm fix lens (*8) and its superior optical characteristic to have less aberrations creates pincushion aberration (concave center part) underwater. This aberration gets more significant with standard close-up lens and powerful lens has more degradation on image corners. The UCL-G165 M55 is so-called wide close-up lens, so the lens can suppresses the aberration and enables more close-up image comparing standard close-up lens. Comparison images as below.

*All images are taken from same distance to compare distortion (pincushion aberration).


Upper left: Without lens. Minimum focusing distance underwater is approx. 65cm/2.1ft.
Upper right: With UCL-G165 M55 Minimum focusing distance underwater is approx. 96mm/3.8in.
Lower left: With UCL-330 via step-up ring. Minimum focusing distance underwater is approx. 202mm/8.0in.
Lower right: With UCL-165 M67 via step-up ring. Minimum focusing distance underwater is approx. 135mm/5.3in.

(*7)
Measured distance between a subject and lens edge when autofocus works underwater (in a tank).
(*8)
Focal length based on 35mm film equivalent.



■ Feature ■

UWL-100 28M55 Wide Conversion Lens (*2) (*3) (*4)
Outer diameter/length 87.4mm/3.44in (Dia), 43.4mm/1.71in (L)
Weight 386g/13.6oz (air) / approx. 222g/7.8oz (underwater)
Mount system INON M55 Mount
Depth rating 60m/197ft
Material/surface finishing Corrosion-resistant aluminum alloy/rigid black alumite
Lens material/coating Optical glass/anti-reflection coating
Construction 4 groups 4 elements
Maximum incident angle (*9) 100.0 degree (underwater)

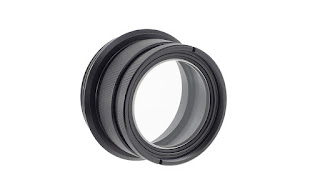

UCL-G165 M55 Underwater Wide Close-up Lens (*5)(*6)
Outer diameter/length 77.0mm/3.03in (Dia), 25.5mm/1.001in (L)
Weight 217g/7.76oz (air) / approx. 135g/4.8oz (underwater)
Mount system INON M55 Mount
Depth rating 60m/197ft
Material/surface finishing Corrosion-resistant aluminum alloy/rigid black alumite
Lens material/coating Optical glass/anti-reflection coating
Construction 2 groups 2 elements
Focal length (*10) 165mm/6.50in *Underwater use only

(*9)
Actual lens coverage varies depending on camera’s shooting mode.
(*10)
Focal length of the lens itself. Not combined focal length with camera’s master lens.



■ Set-up example ■



•Sony DSC-RX0 /genuine underwater housing MPK-HSR1
•UWL-100 28M55 + Lens Hood II for UWL-100 28AD
•LF3100-EW
•Single Light Holder LF
•Shoe Base


•Sony DSC-RX0 /genuine underwater housing MPK-HSR1
•UCL-G165 M55
•LF3100-EW
•Grip Base M1
•Single Light Holder LF
•Direct Arm YS-MV Set

*The “Grip Base D4” is NOT compatible due to housing depth.




•SonyDSC-RX0 /genuine underwater housing MPK-HSR1
•UWL-100 28M55 + Lens Hood II for UWL-100 28AD
•LF3100-EW x2
•Grip Base M1 + D Holder
•Single Light Holder LF x2
•Direct Arm YS-MV Set x2
•Z Adapter MV 1/4-20UNC
•Clamp III
•M67 Lens Arm
•UCL-165M67 *Use as an LCD magnifier

*Above set-up needs to remove pre-installed "Shoe Adapter" by an Allen key (supplied with the housing) to replace with "Z Adapter MV 1/4-20UNC".




■ Comparison images among different lenses at minimum focusing distance ■


Left: Without lens. Shot at camera’s minimum focusing distance (approx. 65cm/2.1ft).
Center: With UWL-100 28M55. Shot at minimum focusing distance of the lens (approx. 12cm/4.7in).
Right: With UCL-G165 M55. Shot at minimum focusing distance of the lens (approx. 10cm/3.9in).


■ Sample images ■



--Subject: Yellow goosefish
--Equipment:
Sony DSC-RX0/MPK-HSR1, UWL-100 28M55, LF3100-EW x 2
--Photo data:
Manual exposure mode (F4, 1/40, ISO100), photo taken at minimum focusing distance (approx. 12cm/4.7in)
--Photo by: T. Aihara (HAMAYUU Marine Service) at "Wannai", Osezaki, Shizuoka, Japan



--Subject: Yellow goosefish
--Equipment:
Sony DSC-RX0/MPK-HSR1, UCL-G165 M55, LF3100-EW x 2
--Photo data:
Manual exposure mode (F4, 1/50, ISO100), photo taken at minimum focusing distance (approx. 10cm/3.9in)
--Photo by: T. Aihara (HAMAYUU Marine Service) at "Wannai", Osezaki, Shizuoka, Japan



--Subject: Longnose hawkfish
--Equipment:
Sony DSC-RX0/MPK-HSR1, UCL-G165 M55, LF3100-EW x 2
--Photo data:
Manual exposure mode (F4, 1/100, ISO400), photo taken at minimum focusing distance (approx. 10cm/3.9in.)
--Photo by: T. Aihara (HAMAYUU Marine Service) at "Wannai", Osezaki, Shizuoka, Japan

*Sample images courtesy of HAMAYUU Marine Service http://hamayuu.net/



■ Relative Information ■

•LED flashlight
http://www.inon.jp/products/le_light/lineup.html

•Arm system
http://www.inon.jp/products/armsystem/lineup.html



January 30th, 2018
INON INC.


*Press release information is as of January 30th, 2018 and subject to change without prior notice.

Labels

Canon (26) INON (23) WideConversion (20) Olympus (19) Optical Cable (17) LED (15) X-2 (15) Closeup (13) Housing (13) Panasonic (12) DomeLens (11) UFL-M150ZM80 (11) 28LD (10) Arm (10) PowerShot (10) UWL-H100 (10) GoPro (9) Z-240 (9) D-2000 (8) LUMIX (8) M67 Lens Adapter Base (8) MountBase (8) Port (7) EOS (6) GF1 (6) GF2 (6) Grip Base (6) Lens (6) sony (6) UWL-S100 ZM80 (5) Flashlight (4) Fujifilm (4) Ikelite (4) LD Lens Adapter Base (4) Nikon (4) OM-D (4) S-2000 (4) Tripod (4) UCL-100 (4) UCL-165LD (4) YS Adapter (4) 40D (3) 50D (3) Bug eye (3) Color temp (3) Diffuser (3) Direct Base (3) Fisheye (3) PowerShot S100 (3) Shoe Base (3) Zoom Gear (3) strobe (3) 60D (2) Action Camera (2) Carbon (2) FT3 (2) FXF500 (2) Micro Fisheye (2) Multi Ball (2) Pancake (2) S95 (2) Type L (2) Z Adapter (2) insect-eye (2) 28M67 (1) Arm. Stick (1) Cap (1) DC43 (1) E-M5 (1) E-PL2 (1) G10 (1) G11 (1) G12 (1) G15 (1) HERO (1) HERO3 (1) HERO3+ (1) J2 (1) LD (1) LE250 (1) PT-050 (1) PT-EP03 (1) Stick (1) TG-1 (1) TG-610 (1) TG-810 (1) TG-820 (1) TZ20 (1) Torch (1) Type4 (1) UCL-G165 SD (1) UFL-G140 SD (1) VideoBase (1) WP-N1 (1) XZ-1 (1) iVIS (1) wireless connection (1)
