「Z Adapter MV」「YS Adapter MV」「Direct Base III」are released
INON INC. is pleased to announce official release of new adapters listed below on December 10th, 2011 (*1). The new 「Z Adapter MV」 and 「YS Adapter MV」are improved model of existing 「Z Adapter」 and 「YS Adapter」to support flexible strobe movement even after clamping with lightweight body at more affordable price. Also existing 「Multi Direct Base II」 is face-lifted to the 「Direct Base III」 which can be attached on a strobe in addition to attaching on housing/base, at budget price together with optional accessories (*1).
・「Z Adapter MV」
--Release date: December 10, 2011
--JAN code ：456212143 652 7
・「YS Adapter MV」
--Release date: December 10, 2011
--JAN code ：456212143 653 4
・「Direct Base III」
--Release date: December 10, 2011
--JAN code ：456212143 654 1
・「M6 Plate Direct Base III」
--Release date: December 10, 2011
--JAN code ：456212143 656 5
・「M5 Plate Direct Base III」
--Release date: December 10, 2011
--JAN code ：456212143 655 8
Product features
●「Z Adapter MV」/「YS Adapter MV」
・ The「Z Adapter MV」/「YS Adapter MV」adds INON Arm II compatible ball joint on combined INON strobe etc. to link to an arm which is equipped with the ball-joint or housing/base which is combined with the 「Direct Base III」 via 「Clamp III」.
・ Newly introduced plastic ball joint provides flexible strobe positioning even without loosening the 「Clamp III」to make it dramatically easy to adjust strobe aiming.
・ Successfully trimmed total weight; 「Z Adapter MV」 air: 35.4g(1.2oz)/underwater approx. 16g (0.6oz) (existing model weight air: 45g(1.6oz) / underwater approx. 29g(1.0oz)), 「YS Adapter MV」 air: 20.4g(0.7oz) / underwater approx. 7g (0.2oz)(existing model weight air: 40g(1.4oz) / underwater approx. 22g(0.8oz)).
●「Direct Base III」
・ The Direct Base III is attached on majority of base products directly or on housings and particular bases via optional 「M6 Plate Direct Base III」 or 「M5 Plate Direct Base III」 to add INON Arm II system compatible ball-joint to link with an “arm” which is equipped with same type ball-joint or a strobe combined with 「Z Adapter MV」, 「YS Adapter MV」 or 「Direct Base III」 with 「Clamp III」.
・ Refined base design enables to attach on a strobe as well in addition to housings/bases. The ball-joint is made from metal to firmly fix strobe position by lightly clamp the 「Clamp III」 (it is necessary to loose the Clamp III to adjust strobe aiming). Depending on usage or preference, INON offers selection from 「Direct Base III」「Z Adapter MV」or 「YS Adapter MV」.
●「M6 Plate Direct Base III」/「M5 Plate Direct Base III」
・ Optional accessory to attach the 「Direct Base III」 on a housing/base which is not able to accept the 「Direct Base III」directly.
Compatible product (*2)
●「Z Adapter MV」
【Compatible strobe etc.】
「D-2000」/「D-2000S」/「D-2000W」/「D-2000Wn」,
「Z-240」/「Z-220」/「Z-220S」/「Z-220F」,
「D-180」/「D-180S」,
「S-2000」,
「Double Light Holder LE」/「Quad Light Holder LE」,
「Strobe Light Holder LE」 (*8)
●「YS Adapter MV」
【Compatible strobe etc.】
・ Attached directly
「Z-22」, Sea & Sea strobe (*3)
・ Attached via optional 「Z Joint」
「D-2000」/「D-2000S」/「D-2000W」/「D-2000Wn」,
「Z-240」/「Z-220」(*4)/「Z-220S」(*4)/「Z-220F」,
「D-180」(*4)/「D-180S」,
「S-2000」, 「Strobe Light Holder LE」/
「Double Light Holder LE」/「Quad Light Holder LE」
・ Attached via optional 「YS Adapter Fixing Bolt」
「D-2000」/「D-2000S」/「D-2000W」/「D-2000Wn」,
「Z-240」/「Z-220」/「Z-220S」/「Z-220F」,
「D-180」/「D-180S」,
「S-2000」
・ Attached via optional 「Single Light Holder LE」
「LE550-W」/「LE550-S」/「LE240」/「LE250」
●「Direct Base III」
【Compatible base/housing etc.】
・ Attached directly
「Grip Base D4」/「Grip Base M1」,
「D Holder」/「D Holder Extension Bar」,
「Port Arm for MRS」/「Port Arm for UFL-M150 EFS60」
・ Attached via optional 「M6 Plate Direct Base III」
“X-2 series” housing/「X-1Z/LZ/NZ」 housing,
「Holder II」/「Grip Bar III Set」/「Holder II Grip Set」,
「Holder Base」/「Grip Bar Set」/「Grip Bar II Set」,
「Grip Base DIII」/「Grip Base DII」,
Other brands’ housing arm system(M6) (*3)(*6)
・ Attached via optional 「M5 Plate Direct Base III」
Other brands’ housing arm system(M5) (*3)(*7)
【Compatible strobe etc.】
「D-2000」/「D-2000S」/「D-2000W」/「D-2000Wn」,
「Z-240」/「Z-220」/「Z-220S」/「Z-220F」,
「D-180」/「D-180S」,
「S-2000」
(*1) Current 「Z Adapter」, 「YS Adapter」and 「Multi Direct Base II」are to be discontinued upon release of above new adapters.
(*2) As of December 7th, 2011
(*3) INON Inc. has not confirmed exact compatibility with specific product. Make sure to check compatibility of the other brands’ product and it does not interfere with combined product by yourself. (*4) Specific production of 「Z-220」/「Z-220S」/「D-180」 cannot accept 「Z Joint」 thus not compatible with 「YS Adapter MV」. See link below for detail of Z Joint compatibility with 「Z-220」/「Z-220S」/「D-180」. http://www.inon.jp/products/armsystem/components.html#joint
(*5) In combination with optional 「Washer Set (Direct Base III both sides mounting)」, maximum two (or four*) 「Direct Base III」 can be directly attached.
*For "Port Arm" products.
【Two 「Direct Base III」 can be attached on both sides of “「YS Adapter」compatible arm”】
・「Grip Base D4」/「Grip Base M1」
・「D Holder」/「D Holder Extension Bar」
【Maximum four 「Direct Base III」 can be attached on both sides of “「YS Adapter」compatible arms” on both ends】
・「Port Arm for MRS」/「Port Arm for UFL-MR130 EFS60」
(*6) Compatible with M6 screw holes with 8mm or more depth and center-to-center distance between 13mm and 28mm.
(*7) Compatible with M5 screw holes with 6mm or more depth and center-to-center distance between 24mm and 28mm.
Other INON products like Grip Base D4/Grip BaseM1 or Z Joint, Direct Base III, comes with the wrench as standard accessory.
Relative information
・ 「Arm System」
http://www.inon.jp/products/armsystem/about.html
・【News】”Z Adapter MV”, ”YS Adapter MV” and “Direct Base III”
http://inonnews.blogspot.com/2011/12/z-adapter-mvys-adapter-mvdirect-base.html
・【News】”Double YS Adapter MV” and ”YS Adapter WB MV”
http://inonnews.blogspot.com/2011/12/double-ys-adapter-mvys-adapter-wb-mvis.html
・【News】”Stick Arm” and ”Multi Ball Arm”
http://inonnews.blogspot.com/2011/12/stick-armmulti-ball-armis-released.html
・【News】”Stick Arm Set”
http://inonnews.blogspot.com/2012/01/stick-arm-set-is-released.html
December 9th, 2011
INON Inc.
*Press release information is as of December 9th, 2011 and subject to change without prior notice.
・「Z Adapter MV」
--Release date: December 10, 2011
--JAN code ：456212143 652 7
・「YS Adapter MV」
--Release date: December 10, 2011
--JAN code ：456212143 653 4
・「Direct Base III」
--Release date: December 10, 2011
--JAN code ：456212143 654 1
・「M6 Plate Direct Base III」
--Release date: December 10, 2011
--JAN code ：456212143 656 5
・「M5 Plate Direct Base III」
--Release date: December 10, 2011
--JAN code ：456212143 655 8
 |
| 「Z Adapter MV」 |
 |
| 「YS Adapter MV」 |
 |
| 「Direct Base III」 |
 |
| 「M6 Plate Direct Base III」 |
 |
| 「M5 Plate Direct Base III」 |
●「Z Adapter MV」/「YS Adapter MV」
・ The「Z Adapter MV」/「YS Adapter MV」adds INON Arm II compatible ball joint on combined INON strobe etc. to link to an arm which is equipped with the ball-joint or housing/base which is combined with the 「Direct Base III」 via 「Clamp III」.
・ Newly introduced plastic ball joint provides flexible strobe positioning even without loosening the 「Clamp III」to make it dramatically easy to adjust strobe aiming.
・ Successfully trimmed total weight; 「Z Adapter MV」 air: 35.4g(1.2oz)/underwater approx. 16g (0.6oz) (existing model weight air: 45g(1.6oz) / underwater approx. 29g(1.0oz)), 「YS Adapter MV」 air: 20.4g(0.7oz) / underwater approx. 7g (0.2oz)(existing model weight air: 40g(1.4oz) / underwater approx. 22g(0.8oz)).
 |
| 「Z Adapter MV」 attached on 「S-2000」 |
 |

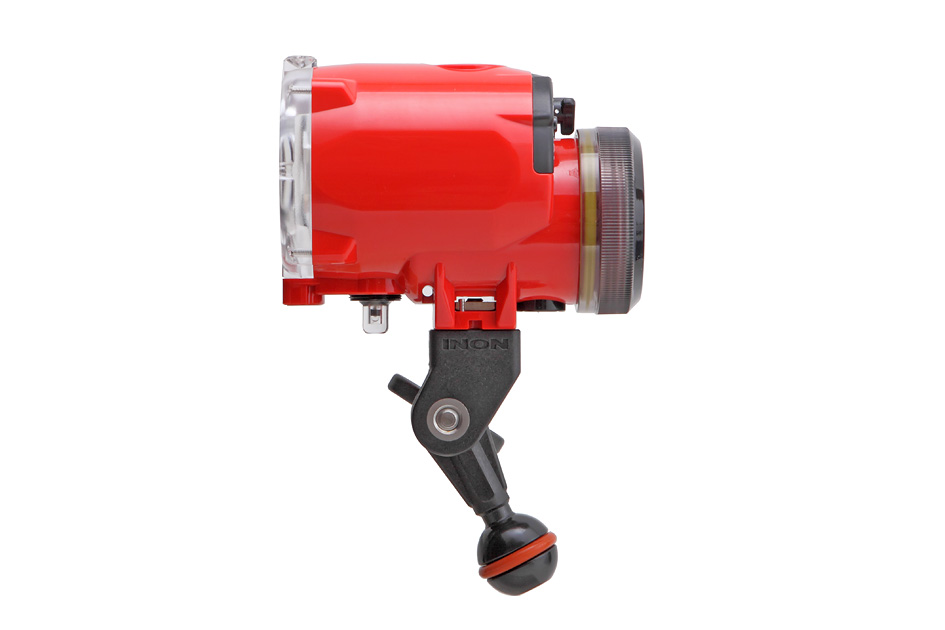

| 「YS Adapter MV」 attached on 「S-2000」 |
 |
| 「YS Adapter MV」 attached on 「LE550-W」/「Single Light Holder LE」 |
●「Direct Base III」
・ The Direct Base III is attached on majority of base products directly or on housings and particular bases via optional 「M6 Plate Direct Base III」 or 「M5 Plate Direct Base III」 to add INON Arm II system compatible ball-joint to link with an “arm” which is equipped with same type ball-joint or a strobe combined with 「Z Adapter MV」, 「YS Adapter MV」 or 「Direct Base III」 with 「Clamp III」.
・ Refined base design enables to attach on a strobe as well in addition to housings/bases. The ball-joint is made from metal to firmly fix strobe position by lightly clamp the 「Clamp III」 (it is necessary to loose the Clamp III to adjust strobe aiming). Depending on usage or preference, INON offers selection from 「Direct Base III」「Z Adapter MV」or 「YS Adapter MV」.
 |
| 「Direct Base III」 attached on 「D Holder」 |
 |
| 「Direct Base III」 attached on 「S-2000」 |
●「M6 Plate Direct Base III」/「M5 Plate Direct Base III」
・ Optional accessory to attach the 「Direct Base III」 on a housing/base which is not able to accept the 「Direct Base III」directly.
 |
| 「M6 Plate Direct Base III」 attached on 「X-2 for GF1」 |
 |
| 「Direct Base III」/「M6 Plate Direct Base III」 attached on 「X-2 for GF1」 |
Compatible product (*2)
●「Z Adapter MV」
【Compatible strobe etc.】
「D-2000」/「D-2000S」/「D-2000W」/「D-2000Wn」,
「Z-240」/「Z-220」/「Z-220S」/「Z-220F」,
「D-180」/「D-180S」,
「S-2000」,
「Double Light Holder LE」/「Quad Light Holder LE」,
「Strobe Light Holder LE」 (*8)
●「YS Adapter MV」
【Compatible strobe etc.】
・ Attached directly
「Z-22」, Sea & Sea strobe (*3)
・ Attached via optional 「Z Joint」
「D-2000」/「D-2000S」/「D-2000W」/「D-2000Wn」,
「Z-240」/「Z-220」(*4)/「Z-220S」(*4)/「Z-220F」,
「D-180」(*4)/「D-180S」,
「S-2000」, 「Strobe Light Holder LE」/
「Double Light Holder LE」/「Quad Light Holder LE」
・ Attached via optional 「YS Adapter Fixing Bolt」
「D-2000」/「D-2000S」/「D-2000W」/「D-2000Wn」,
「Z-240」/「Z-220」/「Z-220S」/「Z-220F」,
「D-180」/「D-180S」,
「S-2000」
・ Attached via optional 「Single Light Holder LE」
「LE550-W」/「LE550-S」/「LE240」/「LE250」
●「Direct Base III」
【Compatible base/housing etc.】
・ Attached directly
「Grip Base D4」/「Grip Base M1」,
「D Holder」/「D Holder Extension Bar」,
「Port Arm for MRS」/「Port Arm for UFL-M150 EFS60」
・ Attached via optional 「M6 Plate Direct Base III」
“X-2 series” housing/「X-1Z/LZ/NZ」 housing,
「Holder II」/「Grip Bar III Set」/「Holder II Grip Set」,
「Holder Base」/「Grip Bar Set」/「Grip Bar II Set」,
「Grip Base DIII」/「Grip Base DII」,
Other brands’ housing arm system(M6) (*3)(*6)
・ Attached via optional 「M5 Plate Direct Base III」
Other brands’ housing arm system(M5) (*3)(*7)
【Compatible strobe etc.】
「D-2000」/「D-2000S」/「D-2000W」/「D-2000Wn」,
「Z-240」/「Z-220」/「Z-220S」/「Z-220F」,
「D-180」/「D-180S」,
「S-2000」
(*1) Current 「Z Adapter」, 「YS Adapter」and 「Multi Direct Base II」are to be discontinued upon release of above new adapters.
(*2) As of December 7th, 2011
(*3) INON Inc. has not confirmed exact compatibility with specific product. Make sure to check compatibility of the other brands’ product and it does not interfere with combined product by yourself. (*4) Specific production of 「Z-220」/「Z-220S」/「D-180」 cannot accept 「Z Joint」 thus not compatible with 「YS Adapter MV」. See link below for detail of Z Joint compatibility with 「Z-220」/「Z-220S」/「D-180」. http://www.inon.jp/products/armsystem/components.html#joint
(*5) In combination with optional 「Washer Set (Direct Base III both sides mounting)」, maximum two (or four*) 「Direct Base III」 can be directly attached.
*For "Port Arm" products.
【Two 「Direct Base III」 can be attached on both sides of “「YS Adapter」compatible arm”】
・「Grip Base D4」/「Grip Base M1」
・「D Holder」/「D Holder Extension Bar」
【Maximum four 「Direct Base III」 can be attached on both sides of “「YS Adapter」compatible arms” on both ends】
・「Port Arm for MRS」/「Port Arm for UFL-MR130 EFS60」
(*6) Compatible with M6 screw holes with 8mm or more depth and center-to-center distance between 13mm and 28mm.
(*7) Compatible with M5 screw holes with 6mm or more depth and center-to-center distance between 24mm and 28mm.
(*8)[Update on January 20th, 2012]
When attaching 「Z Adapter MV」 on the 「Strobe Light Holder LE」 shipped before January 19th, 2012, 「Allen Wrench(AF:5mm)」(or「M6 Hex Wrench」) is required.Other INON products like Grip Base D4/Grip BaseM1 or Z Joint, Direct Base III, comes with the wrench as standard accessory.
It is necessary to replace original "screw" with the one supplied with the 「Strobe Light Holder LE」.
For detail, refer to the user manual appendix below.Relative information
・ 「Arm System」
http://www.inon.jp/products/armsystem/about.html
・【News】”Z Adapter MV”, ”YS Adapter MV” and “Direct Base III”
http://inonnews.blogspot.com/2011/12/z-adapter-mvys-adapter-mvdirect-base.html
・【News】”Double YS Adapter MV” and ”YS Adapter WB MV”
http://inonnews.blogspot.com/2011/12/double-ys-adapter-mvys-adapter-wb-mvis.html
・【News】”Stick Arm” and ”Multi Ball Arm”
http://inonnews.blogspot.com/2011/12/stick-armmulti-ball-armis-released.html
・【News】”Stick Arm Set”
http://inonnews.blogspot.com/2012/01/stick-arm-set-is-released.html
December 9th, 2011
INON Inc.
*Press release information is as of December 9th, 2011 and subject to change without prior notice.
