Compatibility with Canon iVIS HF M43/M41, WP-V3

INON INC. has confirmed compatibility of current INON attachment lens/arm with Canon digital camcorder 『iVIS HF M41 (VIXIA HF M41/LEGRIA HF M41)』/『iVIS HF M43 (VIXIA HF M43/LEGRIA HF M43)』/「WP-V3」(*1).

Compatible Arm Product
  • 「Video Base V2」(*2)(*3)(*4)
    --available in the market
    --JAN code : 456212143 575 9

  • 「Shoe Base」
    --available in the market
    --JAN code : 456212143 355 7

  • 「D Holder」
    --available in the market
    --JAN code : 456212143 431 8


    「Video Base V2」（right）
    「Video Base V2」 on iVIS HF M41 / WP-V3 （left）

    The 「Video Base V2」 is a dedicated optional accessory (*2)(*3)(*4) to attach lighting arm including 「Shoe Base」/「D Holder」 on Canon water-proof case「WP-V3」(*1)/「WP-V2」(*1).

    The「Video Base V2」consists of a base plate which is specifically designed to match with unique base shape of Canon「WP-V3」/「WP-V2」and is attached on the case with the base plate and pressure bonding around the lens port to benefit to hold INON LED flashlight including「LE550-W」firmly without rattle.

    The「Video Base V2」can have compact「Shoe Base」on top of the lens port and two「D Holder」on both sides to support simple and compact set-up as well as upgrading to multi lighting system only with compatible flashlight(s) and lighting arm product(s).

    The「Video Base V2」and combined「Shoe Base」/「D Holder」does not obstruct to open/close the water-proof case and will not bother you when you need to change batteries with these accessories being attached on the water-proof case.


    (*1)
    Contact Canon Inc. for detail of camcorder/water-proof case.
    INON Inc. confirms product compatibility based on a camcorder/housing available in Japan.

    (*2)
    The previous「Video Base V1」is not compatible with the「WP-V3」as it is but can be used in combination with optional『Base Plate (with 1/4 Tripod Screw) for Video Base V2』in exchange of original Base Plate. Contact your purchasing dealer or INON for detail.

    (*3)
    Canon genuine balance weight「WW-DC1」is not usable together with this product.

    (*4)
    When attaching only「Video Base V2」on『iVIS HF 41 (with BP-808D battery)』/「WP-V3」, total camera system has approx.165g buoyancy underwater (in fresh water). So please add other accessories to have appropriate underwater weight to avoid uncontrolled ascent. Please visit below link page for detail of underwater weight of each product.

  • Underwater weight chart
    http://www.inon.jp/products/armsystem/weight_table.html


Attachment Lens Compatibility
    Canon「WP-V3」has 67mm screw lens mount as standard feature and INON 『28M67 Mount series』wide conversion lens or『M67 Mount series』close-up lens is directly attached on the「WP-V3」.

  • Attachment lens for macro shooting
    Both「UCL-330」/「UCL-165M67」is usable.

  • Attachment lens for wide shooting
    「UWL-H100 28M67 Wide Conversion Lens『Type2』」is directly attached on the「WP-V3」 and its super wide option「Dome Lens Unit II for UWL-H100」further increases view angle.

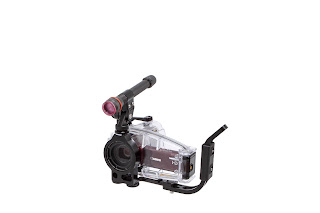

Setup example

  • Canon「iVIS HF M41」+ Canon「WP-V3」
  • 「Video Base V2」
  • 「LE550-W」
  • 「Single Light Holder LE」
  • 「Shoe Base」
  • 「D Holder」


  • Canon「iVIS HF M41」+ Canon「WP-V3」
  • 「Video Base V2」
  • 「UWL-H100 28M67 Type2」
  • 「D Holder」
  • 「D Holder Extension Bar」
  • 「M67 Lens Holder S」
  • 「Multi Direct Base II」
  • 「Clamp」x 2
  • 「Float Arm M」
  • 「M67 Lens Holder for Float Arm」
  • 「Z Joint」
  • 「YS Adapter」
  • 「Double Light Holder LE」
  • 「LE550-W」x 2
  • 「UCL-165M67」


  • Canon「iVIS HF M41」+ Canon「WP-V3」
  • 「Video Base V2」
  • 「UWL-H100 28M67 Type2」
  • 「Dome Lens Unit II for UWL-H100」
  • 「D Holder」x 2
  • 「Multi Direct Base II」x 2
  • 「Clamp」x 4
  • 「Mega Float Arm S」x 2
  • 「Z Joint」x 2
  • 「YS Adapter」x 2
  • 「Double Light Holder LE」x 2
  • 「LE550-W」x 4
  • 「M67 Lens Holder for Float Arm」
  • 「UCL-165M67」


Relative Information on INON Website


May 20th, 2011
INON INC.
