Thursday, May 27, 2010

"M67 Lens Adapter Base" for Panasonic LUMIX series

INON INC. will release "M67 Lens Adapter Base" on April 22nd, 2010 to support below listed Panasonic marine cases to attach INON M67 series close-up lens [UCL-330][UCL-165 M67];

    "DMW-MCTZ10"(*1) for "LUMIX DMC-TZ10"(*1)
    "DMW-MCTZ7"(*1) for "LUMIX DMC-TZ7"(*1)
    "DMW-MCTZ5"(*1) for "LUMIX DMC-TZ5"(*1)
    "DMW-MCZX3"(*1) for "LUMIX DMC-ZX3/LUMIX DMC-ZX1"(*1)
    "DMW-MCZX1"(*1) for "LUMIX DMC-ZX1"(*1)

  • M67 Lens Adapter Base MCTZ10 (*2)(*3)(*5)
    --Exclusively for Panasonic「DMW-MCTZ10」(*1)
    --Scheduled release date : April 22, 2010
    --JAN code:456212143 576 6


  • 「M67 Lens Adapter Base MCTZ10」 installed on DMW-MCTZ10 / LUMIX DMC-TZ10(left)
    「M67 Lens Adapter Base MCTZ10」(right)
  • M67 Lens Adapter Base MCTZ7/TZ5(*2)(*3)(*5)
    --For Panasonic「DMW-MCTZ7」(*1) or 「DMW-MCTZ5」(*1)
    --Scheduled release date : April 22, 2010
    --JAN code:456212143 577 3


  • 「M67 Lens Adapter Base MCTZ7/TZ5」 installed on DMW-MCTZ7 / LUMIX DMC-TZ7(left)
    「M67 Lens Adapter Base MCTZ7/TZ5」(right)
  • M67 Lens Adapter Base MCZX3/ZX1 (*2)(*3) (*4)
    --For Panasonic「DMW-MCZX3」(*1) or 「DMW-MCZX1」(*1)
    --Scheduled release date : April 22, 2010
    --JAN code: 456212143 578 0

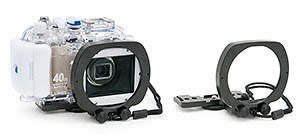

  • 「M67 Lens Adapter Base MCZX3/ZX1」installed on DMW-MCZX3 / LUMIX DMC-ZX3(left)
    「M67 Lens Adapter Base MCZX3/ZX1」(right)

--Product features--
    The 「M67 Lens Adapter Base」 is a dedicated accessory to attach INON 『M67 Mount Series』 close-up lens「UCL-330」「UCL-165 M67」 on a marine case/water-proof protector which is not compatible with existing M67 Mount Base (*2)(*3)

    The component Base Plate is designed based on base shape of compatible marine case/water-proof protector to fit securely on it without rattle. This product directly accepts dual functional product 「Grip Base D4」or 「Grip Base DIII」 as a grip and lighting arm enabling to add compatible strobe/LED flashlight together with various lighting arm product to support simple/compact and even friendly upgrade to multi lighting system.

    The Lens Adapter Unit is mounted on the compatible marine case/water-proof protector at lens pot with pressure molding and supplied Supporting Screws to reliably hold compatible close-up lens. The Lens Adapter Unit can be separated with combined attachment lens by simply loosening the Supporting Screws.

    (*1)
    Contact Panasonic Corporation for detail of camera/marine case. INON Inc. confirms product compatibility based on a camera/housing available in Japan.

    (*2)
    This product does not support a wide conversion lens due to camera master lens specification.

    (*3)
    When using a close-up lens on this product underwater, significant vignetting will be observed at zoom wide end. Zoom towards to telephoto side little bit to avoid vignetting

    (*4)
    On land, slight vignetting on image corners at zoom wide end even without a close-up lens. Crop an image or use without the lens adapter unit.

    (*5)
    When using 「DMW-MCTZ10 / LUMIX DMC-TZ10」, 「DMW-MCTZ7 / LUMIX DMC-TZ7」or「DMW-MCTZ5 / LUMIX DMC-TZ5」only with the M67 Lens Adapter Base, the camera system will have great buoyancy. Adjust total underwater weight by using other accessories to get appropriate underwater weight to avoid accidental rapid ascent.

--『LUMIX DMC-TZ10』/「DMW-MCTZ10」combination example--

    • Panasonic 「LUMIX DMC-TZ10」+ Panasonic 「DMW-MCTZ10」
    • 「M67 Lens Adapter Base MCTZ10」
    • 「UCL-330」
    • 「S-2000」(with supplied “-0.5 White Diffuser for S-2000”)
    • 「Optical D Cable Type L / Cap W35 Set with Clear Photo System Film」
    • 「Grip Base D4」
    • 「D Holder Extension Bar」
    • 「Z Joint」
    • 「M67 Lens Holder S」
    • 「UCL-165 M67」

    • 「LE240」(with supplied “W40° Filter LE”)
    • 「Single Light Holder LE」
    • 「Shoe Base」


    -- 『LUMIX DMC-TZ10』/「DMW-MCTZ10」sample images--

      --Subject / shooting distance:Lumpsucker (approx. 5mm(0.2”) in length)/ 20-25cm (7.9-9.8”)
      --Equipments :Panasonic LUMIX DMC-TZ10/DMW-MCTZ10,M67 Lens Adapter Base MCTZ10, UCL-165M67+ UCL-330, S-2000 x 4 (S-TTL Auto mode), LE240 + W50° Pink Filter・LE
      --Photo data:Zoom telephoto end (49.2mm), 1/250, F6.3, ISO80, WB: Daylight, color effect : Standard
      --Photo by : R. Hattori (INON INC.)at Kotogahama beach/ Manazuru, Kanagawa, Japan
        --Subject / shooting distance:Spotfin frogfish (face width approx. 2cm(0.8”))/ 20-25cm (7.9-9.8”)
        --Equipments :Panasonic LUMIX DMC-TZ10/DMW-MCTZ10,M67 Lens Adapter Base MCTZ10, UCL-165M67+ UCL-330, S-2000 x 4 (S-TTL Auto mode), LE240 + W50° Pink Filter・LE
        --Photo data:Zoom telephoto end (49.2mm), 1/250, F6.3, ISO80, WB: Daylight, color effect : Standard
        --Photo by : R. Hattori (INON INC.)at Kotogahama beach/ Manazuru, Kanagawa, Japan

        --Subject / shooting distance:Threespot dascyllus (approx. 3cm(1.2”)) in length/ 20-25cm (7.9-9.8”)
        --Equipments :Panasonic LUMIX DMC-TZ10/DMW-MCTZ10,M67 Lens Adapter Base MCTZ10, UCL-165M67S-2000 x 4 (S-TTL Auto mode),
        --Photo data:Zoom middle position (42.6mm), 1/1000, F4.7, ISO100, WB: Daylight, color effect : Standard
        --Photo by : R. Hattori (INON INC.)at Bitagane/Atami, Shizuoka, Japan
        --Subject / shooting distance:Cherry bass (approx. 10cm(3.9”) in length)/ 35-40cm (13.8-15.7”)
        --Equipments :Panasonic LUMIX DMC-TZ10/DMW-MCTZ10,M67 Lens Adapter Base MCTZ10, UCL-330, S-2000 x 4 (S-TTL Auto mode),
        --Photo data:Zoom middle position (32.1mm), 1/200, F4.5, ISO80, WB: Daylight, color effect : Standard
        --Photo by : R. Hattori (INON INC.)at Sodaine/Atami, Shizuoka, Japan

        INON M67 Lens Adapter Base MCTZ10 (LUMIX DMC-TZ10/DMW-MCTZ10) sample moviewith LE240 x 1 + W50° Pink Filter・LE, UCL-165M67, UCL-330

      --Relative information--


      April 8th, 2010
      INON INC.
